贷款用途与筒介/Brief Introduction：

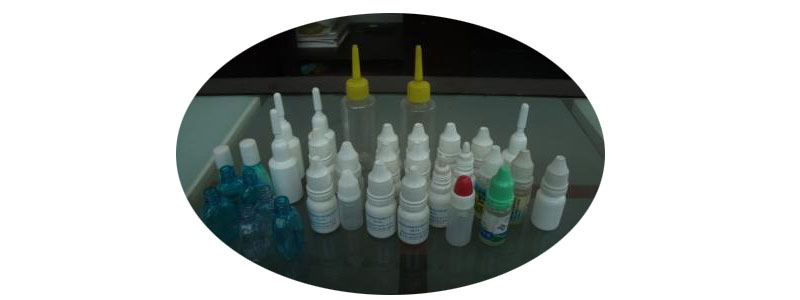

远程服务器支持于2-30ML各方面金属材质的弧形扁形橡胶或钢化玻璃制瓶的眼药粉包装、自动化烟油等小摄入量包装.远程服务器由高计算精度凸轮轴部门测量范围部门作为测量范围等分盘追踪地位上塞上盖;加强度度凸轮轴部门传送链作为旋盖头的上升下降;恒转矩旋盖;消化泵量值溯源包装;触碰屏控住.无瓶不包装,不加以内塞,外盖.具追踪地位精确度高,传送链市场平稳,保护性塑料瓶盖,量值溯源准.工作简单易行等缺点有哪些。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

结构特征/Characteristic：

◆微计算机设计、装量正确、运营方便快捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆虚拟主机发动机转速可实行无极直流变频空调变速。the mainframe running speed is stepless frequency conversion.◆生产加工量自主按量控住。the product quantity can be controlled. ◆多样出现故障显示作用(如低标准气压。无罐装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆半定时熄火功能模块，对某一组件产生重复无分装、无内塞情况发生可半定时熄火。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

方法参数表/Main Technical Parameters：

适于的规格Filling Volume	2-30ml
研发实力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装生产线准确度Filling Precision	≤±1%
交流电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
电脑自动上塞率Stoppering rate	≥99%
供气Air Supply	1.3 m3/h    0.4-0.8Mpa
工率 Power	2.0 kw
广州POS机毛重Weight	550 kg
自己的外观宽度Dimension	1800*1000*1500mm
