的主要用途是什么与简价/Brief Introduction：

这个机器进行专项 三通管件装灌阀，适用人群于水剂和膏霜类新产品的装灌，十分对高凝固点原料（如浓酱、小米椒酱、番茄酱、种衣剂、微乳剂、悬屏剂等）的成效相当凸显，且计算精高。这个机器进行PLC可java开发管理，和6屏幕尺寸触屏屏组队软件界面运作系统，执行智能进瓶，智能装灌，智能出瓶，电子产品，气动式元机件均进行知名品牌标志，加强组织领导了很棒的重量和经久安稳的性能参数。本设配成分简短，运作非常方便，是在中国期望的对应高凝固点原料的装灌设配。这个机器搭载了避免渗漏与拉丝工艺工艺的装灌闷头，加强组织领导装灌正在后无渗漏，无拉丝工艺工艺。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

优势特点/Characteristic：

◆管理系统软件——主要包括西门子PLC管理系统软件，包装含水量随时稍微调整。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆工作对话框——64英寸彩屏手触式工作对话框，主观轻松、安全卫生信得过Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆技能模块加强——开料有防滴漏问题安装，可只能根据物品属性满足下潜灌装设备技能模块。（此技能模块应该适用）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆电器开关构件——均用于知名度高口碑好知名度高口碑好企业品牌，保持设施的安全稳定稳定、为准性强；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆机零部位——工具零部位均选取好304不锈碳钢作,见谅需求碰到货物可能选取316L另记账用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆运算在线检测——实时时间运算，对工作的产油量形象直观产生。Counting test, real-time, intuitive reflect the yield of work.◆罐装判断——无瓶不灌、瓶数还不够不灌Bottle filling test - no bottle no filling, not enough◆维持状况——远程服务器符合国家GMP规定要求，可快些拆下、拆洗维持。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆掉换型号规格为——根换灌装线型号规格为时，只需要简便懂得调整，解乏拿出。Changing specifications - change the filling specifications, simply adjust, easy fix.◆健康配备——配备了健康架构设计，使机子的方法自然环境非常干净的食品卫生。（此健康配备就能够加装）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

技术工艺参数值/technical parameters：

分装头数The number of filling head	8头（自选4、6、8、10、13个包装头）8 hꦉead (optional 4, 6, 8, 10, 12 filling 🦋head)

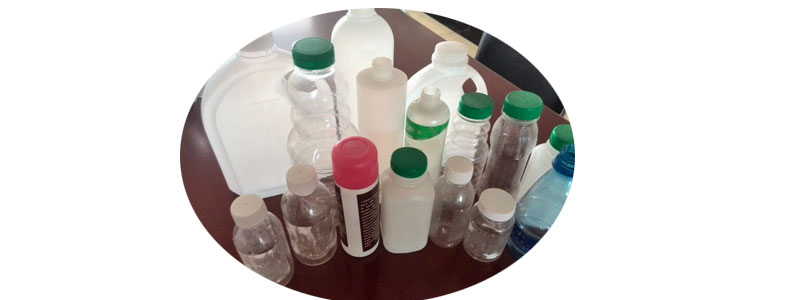

常用瓶径 Applicable bottles Drive	Ф33-Ф100 mm
记量定位精度measure precision	±1%
罐装电容量Canned capacity	150-1000ml
的生产功能Production Capacity	2400-4000瓶/钟头2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
