领域与间介/Brief Introduction：

肌内接种用清水装备肌内接种用清水是纯化水经分馏得到的，菌类内内毒素等目标均适用中国有药典肌内接种用清水项下規定的水的质量特殊要求，可当养家糊口物药业有限公司制造业企业中各样之间肌内接种入人体内内类药的稀释剂。肌内接种用清水装备包括是涉及到肌内接种用清水制作、循环法存储、动态展示分派和加工工艺操控等包括是模快。

优点/Characteristic：

◆自动化操控措施，以免专业人员误操控带来了的的生产海损；Automatic operation mode, to prevent losses of wrong operation of production;◆零件应用316L面料；Components in 316L texture◆带PLC掌握的CIP物料；CIP products with PLC control◆统计与存为进行维护清洁具体方法步骤的性能与方法步骤；Record and save the parameters of the cleaning process and steps◆满意GMP标准的溯源系统到性与顾忌明性； Meet GMP requirements traceability and accountability◆一身化制定有没有效节约开支个人空间；Integrated design can effectively save space◆保证研发和干净的的如何快速设置；Implement production and clean fast switching◆巴氏灭菌消毒，家电清洗更彻底删除文件；Babbitt disinfection sterilization, cleaning more thoroughly◆多效蒸溜机：组装机蒸汽管道无线连结整体用自動焊接生产，按环保级标，铜阀用快卡无线连结，严防了打针污水的重新危害；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯蒸汽式發生器：PLC电脑运作调整菜单栏，可0-100%半自动改善至需用的出现规定；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无㓟盲区制作：肌内注射拿水模式净化液压管路满意GMP3D特殊要求，胶垫为PTPE/EPDM，膈膜阀水平面装设时为90度，循环往复往复管网装设设为0.5的道路坡度，设低开为排卸点,并用湍液情形循环往复往复分子运动的储放和输料模式，处理益生菌技术的生长；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆齐全的文本目录格式设计：①文本目录格式契合GMP合乎要求；②电脑智能化设定设计可契合GAMP5；③3Q文本目录格式达到药业有限公司厂验正的都要。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆标准配备高稳定性变频器泵用在输送机和确定针剂用自来水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板管式换热器器，在纯化水长周期循坏步骤中起着冷凝功能。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆打针使用水贮罐合理所采用落地式贮罐此外柜式贮罐，满意运输泵潮位要，物理学设为罐中水流量预防动物膜形成了。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆采用了80℃上文恒温间歇制定，解决需要用水软件系统产气荚膜梭菌工程繁衍和污染问题。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆选配通电液体加熱（液体液体加熱）呼吸系统滤出器。Equipped with electric heating, steam heating) breathing filter◆罐底出水量口加设碗形隔板以不断扩大采河面，避免 电磁。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐接入网选择N2维护，形成医药集团自来水储藏及分摊系统软件正压力，杜绝外部结构逆流严重污染。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆药厂纯净水输送管泵按照316L不锈钢板制作业（浸水部份），电打蜡 并钝化处里。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

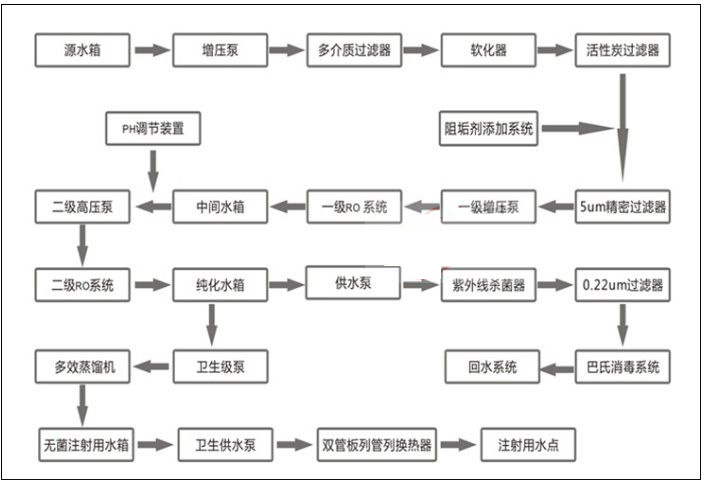

三、系统软件生产工艺方案图
