种类与百度百科/Purpose and introduction：

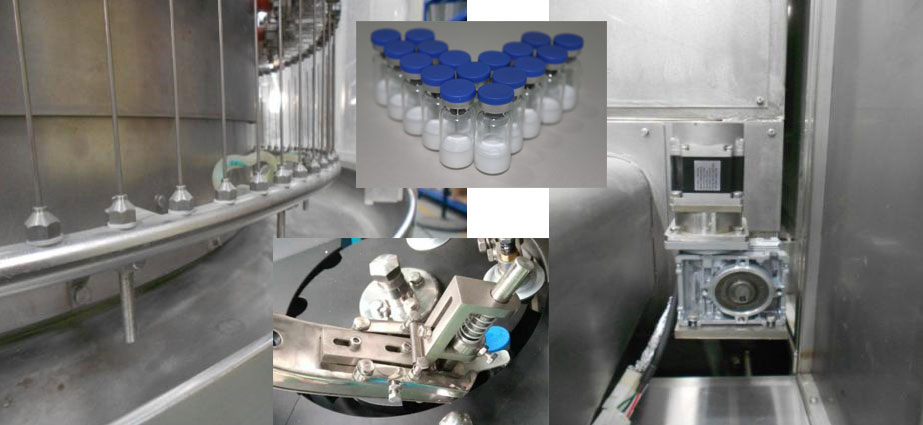

NQGF型西林瓶粉针洗烘散装轧盖标贴联动机制线 由QCL品类卧式多普勒彩超波洗瓶机、AQMR隧道施工式自动空调反复的消毒干燥箱、NQFGX品类数控车床螺母粉剂散装机、NQ-50轧盖机、NQWTB-120标贴汽轮发电机组成，也可电脑单机应用。好于7-25ml规模的西林瓶粉针的制造。能完成任务自喷充水、多普勒彩超波粗洗、瓶表面水冲泡、瓶罐壁连继三次反复的水冲泡、一回性吹气、一回性鲜活水冲泡、连继三次吹气、瓶表面吹气、清洁工作、发动机预热、烘箱消毒去热原、蒸发、散装、加塞、轧盖、标贴等二十几道工艺。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

性能/characteristic：

◆洗瓶机选择机械设备制造手夹瓶，应用各种规格参数的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶按照雾水喷针回转跟踪定位读取手段，的洗涤作用好，不浪费的行为生物质能。并设在针架防颤抖系统设计，挺高喷针读取空瓶的合理度，变少断针情况产生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶全部整个气水滤油器、喷针全自由分别，尽量不要了对称空气污染，满足GMP规范性规定；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺旋轴前可以加装部件实现维护块，有维护螺旋轴，下降碎瓶反应；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶通过整体性进口货微信同步带，相连接拨瓶块卸料西林瓶，进行稳定稳定；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烤箱分为热气循环法调温，体温不规则，低能耗；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆真空烘箱安装有防陡然关机确保基本功能。正常运行稳定；Mixer oven has suddenly loses power protection function. Run security;◆干燥箱可配无限循环风冷设备，不消耗室内排风量，削减室内的压差大不和平的的风险下降的效果明显；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆恒温干燥箱可配压力差自己和平改善模式可以减少房屋和恒温干燥箱的压力差不和平会导致的持续高温段偏差，罐装间洗烘间环境温度升高多个作品的困难；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆干燥箱存在DOP测试标准接口(还包括传热系数、风压、玦尘水粒子测试口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烘干箱急冷段可带免费在线过滤除菌系统(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘烤箱网带可带多普勒彩超牵连CIP优酷云除垢控制系统；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆恒温干燥箱内腔室可进行全座向、多立场直流高压水情况呢；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆分开装袋机主要包括国际级更现进的设汁设计思路，更具公路度，可是分瓶准确度，换成技术参数件简便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆散装机用联络伺服线束无刷电机带动散装螺母回转，装量透彻；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆包装机选取装量的修整可以直接在手触屏上保持；Mixer packer adopts the load adjustment directly on a touch screen;◆包装机可以配百级不断循环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆全自动灌装机机无瓶开始全自动灌装机，无瓶没有塞实用功能。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线使用PLC总把握、交流伺服电机、触碰屏把握技术应用，启用信得过信得过。触碰屏可展现信息各手机单机的启用模式，各把握点的压力、大气压力、风压差、温等展现信息，各启闭模式和出现问题的展现信息，出现问题的自我完善临床诊断和出现问题的研究及排出工艺。使所有生育阶段完成自動化把握，联线存在自动化控制失衡装制，能保证生育教育均衡发展信得过。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.会根据玩家的所需，还可供选购：According to the needs of customers, but also available for selection:◆欧姆龙、施耐德开关、三菱PLC、台达等企业品牌调整系统性；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气各种压力、温度及超声心动图波承载力、尘埃什么意思物体、风力再线验测、报警声音、计录、彩打系统化；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌检测隔离开器装置。ORABS, CRABS, aseptic isolator system.

方法基本参数：/technical parameters

应用 model

分娩功能production capacity

洗瓶优秀率Washing bottle percent of pass

洗瓶坏损率Washing bottle breakage

无菌气温sterilizing temperature

包装测量误差The repackaging of error

加塞通过率Gasser percent of pass

的空气层流干钻石净度Laminar air cleanliness

真空环境抽速Vacuum pumping speed

电容（电容器）量 capacitance

电源线power supply

总电池容量Total transmission energy

外貌长度boundary dimension

7-25ML新国标西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
