使用与介简/Purpose and introduction

该生产方式线由理瓶机(上瓶台)、高周波波洗瓶机，灌装生产线(旋盖)加塞机，轧盖机，贴标签机等机 组成了On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

特性/characteristic：

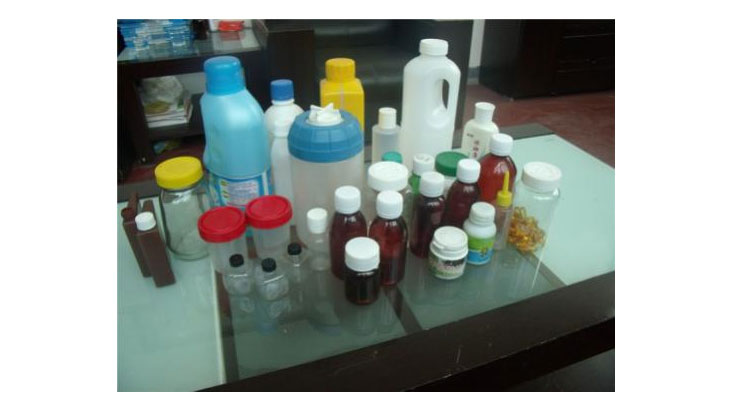

该工作线适于 30-500ml品类食品的罐装加塞封好，换掉一系列规格型号塑胶片模后，既适于塑胶片瓶，也适于的玻璃酒瓶。拥有自我调节范畴广泛应用，調整利于的的特点。整线工作业务能力；适玻璃瓶粗细形壮，木块效果而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

枝术规格/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶洁净室度Washing bottle cleanliness(%)	> 99
装量不确定度The load error(%)	0-2
上塞达标率Plug on the percent of pass(%)	> 98
轧盖通过率率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
